(inset) Shower Door Bracket Glass Sleeve

Our factory produces high-quality shower door bracket glass sleeves. Durable and sleek, our products are designed to meet your shower door needs.
Request a Quote


Basic Info.

Model NO.
50 PCS
Cp,Bn,Sn,Pss,SSS and etc.
Bevel/Beveled/Bevelled/Obligation/Oblique Sharp
Ensure The Wall Is Strong Enough
Customized Packaging
Available From 3000 Pieces
Customized Logo
Graphic Customization
One-Stop Solution
Bathroom Hardware Accessories Procurement
Pay Attention
Fasten All of The Fixing Screws
Black Rubber,Transparent PVC and Gray Non-Asbestos
180 Degree
Transport Package
Carton by Sea, Air or Land as Your Request
100x58mm or OEM&ODM service for your choice
HS Code
Production Capacity
500000 Sets/Month

Product Description

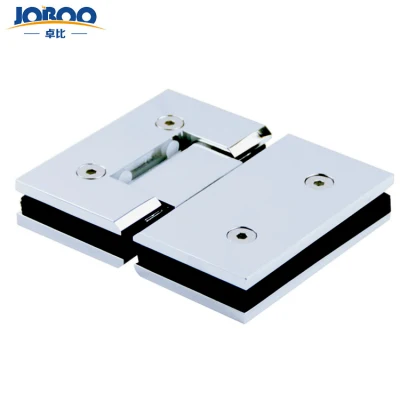

(inset) Shower Door Bracket Glass Sleeve
Tempered Glass Hinges Description

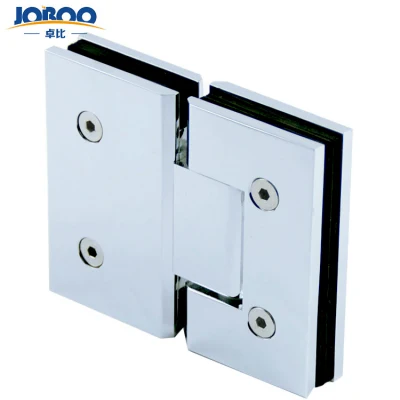

(inset) Shower Door Bracket Glass Sleeve

Joboo Zb615 Obligation Customizable Chrome Satin Brass Glass Mount 180 Degree Tempered Glass Door Hinges Connector Bathroom Accessories
Product Specifications
Model No. ZB615
Material Forging Brass/SS316/SS304
Finish CP,BN,SN,PSS,SSS and etc.
Size 100*58mm
Glass Thickness 8mm(5/16") to 12mm(1/2") Tempered Glass
Type Glass to Glass
Open-Close Test 100,000 times
Weight Capacity Maximum Loading of 2 Hinges is 40 KGs, Maximum Loading of 3 Hinges is 55 KGs.
Shape Bevel/Beveled/Bevelled/Obligation/Oblique Sharp
Adjustable No
Gaskets 1)Black Rubber,Transparent PVC and Gray Non-Asbestos Gaskets are available.
2)The model can be with our special anti-skid gaskets also, please contact us for further information.
Package Individual Package
Other Accessories
(Corresponding Product)
1) Decorative Cap/Decorative Cover, Hexagon Screws with Allen Key, Self-Tapping Screws with Expansion Tubes.
2) Phillips Screws,Self-Tapping Scres with Expansion Tubes, the model can be with Phillips Screwdriver also, please contact us for further information.
Degree 180 Degree / Reversible 5 Degree(5 Degree Pre-Set/With 5 Degree Pin)
Hinge Swings 180 degree in and 180 degree Out
Closing Type Self-Closing when the door stays at 25 degree approximately. (Hinges With Spring)
Pay Attention 1) Ensure the wall is strong enough.
2) Fasten all of the fixing screws.
3) Please consult product manufacturer for maximum height of frameless glass door.
Service 1) OEM / ODM: Available.
2) Customized Packaging: Available from 3000 pieces.
3) Customized Logo: Available.
4) Graphic Customization: Available.
5) One-stop Solution: Bathroom Hardware Accessories Procurement.

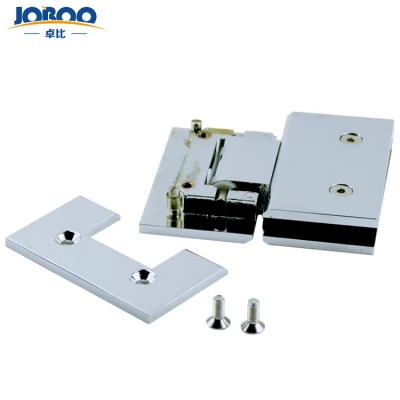

(inset) Shower Door Bracket Glass Sleeve

Optional Color/Surface Treatment/Finsh
You can select a swatch as the following colors/surface treatment/finsh.Please kindly click to contact us if the picture doesn't show the color you expect.

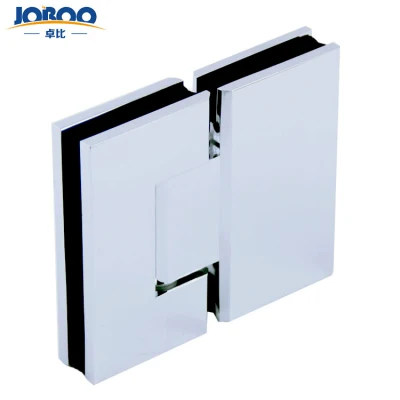

(inset) Shower Door Bracket Glass Sleeve
Product Certificate
(inset) Shower Door Bracket Glass Sleeve

(inset) Shower Door Bracket Glass Sleeve
About Joboo
Foshan Joboo Metal Products Co., Ltd. was established in 1999,specialized in manufacturing and exporting all kinds of glass door hardware accessories,such as shower hinges, glass brackets, door handles, waterproof strips and etc.We can offer both OEM and ODM service to suit your needs.

And Our wide range of Glass Hinges, Fittings and Shower Hinges are manufactured with utmost care and precision. These hinges are designed using top notch raw materials and the latest technology in conformity with industrial, domestic and commercial standards. The hinges we offer are stringently tested under supervision against several parameters of quality and are highly demanded in national as well as international markets for their unique features. Our vast industrial experience allows us to offer our clients an extensive range of Shower Hinges that are appreciated for optimum quality and high functionality. Some of these products, offered in various sizes and designs, have adjustable tension and can be mounted as per the direction and preference of the clients.
(inset) Shower Door Bracket Glass Sleeve
(inset) Shower Door Bracket Glass Sleeve
(inset) Shower Door Bracket Glass Sleeve
